CTN Slot Type Chain Bucket River Gold and Diamond Mining Dredger for Congo Full Payment

Model NO. : QHM-14

Slot Type : CTN

Customized : Customized

Condition : New

Warranty : 1year

After-sales Service : Lifelong

Capacity : 60m3-300m3

Dredging Depth : 7m-20m

Drum Screen Length .Diameter : 1.4mx1.2m-2.6mx1.5m

Durm Screen Power : 5.5kw-20kw

Generator Power : 75kw-150kw

Width : 4.5m-10m

Hight : 1.0m-2m

Bucket Quantity : 86PCS-100PCS

Chain Quantity : 172PCS-200PCS

Dredging Power : 37kw-150kw

Lifting Motor Power : 7.5kw-100kw

Injection Pump Power : 7.5kw-50kw

Migration Device : 4kw X 3-10kw X3

Drum Screen Motor : 5.5kw-50kw

Product Brand : Set Sail

Transport Package : Container

Specification : total length 24meter-38meter

Trademark : Set Sail

Origin : Qingzhou City Shandong Province China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 3100.00cm * 500.00cm * 225.00cm

Package Gross Weight : 60000.000kg

Lead Time : 40 days (1 - 1 Sets) To be negotiated ( > 1 Sets)

Type : Chain Bucket Gold Dredger

Power Type : Electric

Cyclone Type : Hydrocyclone

Samples : US$ 2000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Chain bucket river gold and diamond mining dredger for Congo

1. Chain bucket gold dredger discription :

Bucket chain gold dredger adopts assembled box struture . according to the geographical enviroment to design all operation type . it is made of digging device . lifting device separating sand device . gold selection device . tailing processing device . generator set. positing device so on .

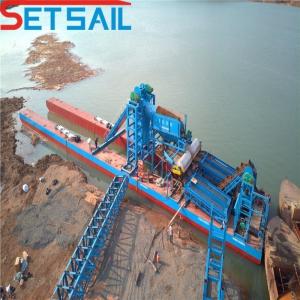

2.Chain bucket gold dredger picture :

CTN Slot Type Chain Bucket River Gold and Diamond Mining Dredger for Congo Full Payment

3.Chain bucket gold dredger working principle :

Chain bucket gold dredger . throuth the electric motor to drive chain bucket dig the mixture of sand .mud . stone and gold. then the bucket put mixture into the the drum screen to separate mixture . Standard material will into the gold seledtion device to select by vibration . non -standard material will into the river by belt convery or other place . all power from generator sets . position use the winch to fix the dold dredger when it is working .

4.Chain bucket gold dredger basic parameter:

Item \type	Hull size	Dredging depth	Drum scrren power	Generator power and brand	Dredging power	Lifting power	Chain bucket capacity
QH-60	24m	7m	5.5kw	Cummins /75kw	35kw	7.5kw	0.035m3
QH-80	27m	12m	5.5kw	Cummins/75kw	55kw	18kw	0.05m3
QH-100	30m	13m	5.5kw	Cummins /75kw	55kw	22kw	0.08m3
QH-120	35m	15m	7.5kw	Cummins/75kw	75kw	22kw	0.08m3
QH-150	38m	18m	11kw	Cummins /75kw	75kw	22kw	0.08m3

5. Company profile :

Set sail dredging machinery equipment factory is manufacture. mainly product : all kinds of cutter suction dredger . jet suction dredger . chain bucket sand dredger . chain bucket gold and diamond dredger .land mining machiery . multi-function service working boat . wheel bucket dredger . trailing suction dredger so on .Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa,Afrrica,South America,Middle Easr and other regions.

6.Product feature :

The dredging bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed, then trommel classifier, with single layer or double layer screens, will separate the gravels, clay balls, water plants with need sand. The find sand with fine gold & gold nuggests will be finished selection by the gold centrifuge,pulsating sluice box and fixed sluice box. After 3 process of gold panning, the gold recovery percentage can be upto 90%.
Our bucket chain gold dredger is very fir for the alluvial sand with gold. If the river sand with a lot of big pebbles, the bucket chain type is one perfect choice.

7.FAQ:

1	the gold particle size in mm?
2	if you will require the diesel generator? and any special requirement for the generator brand?
3	In the dredging raw ore, the sand & stone percentage? stone's size in mm?
4	How many meters for the dredge depth?
5	How many cubic meter per hour for the deal capacity?

8. Workshop :
CTN Slot Type Chain Bucket River Gold and Diamond Mining Dredger for Congo Full Payment

9. Customer visit and factory certification : CTN Slot Type Chain Bucket River Gold and Diamond Mining Dredger for Congo Full Payment

10. Why choose Set Sail chain bucket mining dredger :

A wide range of use applications
High efficiency, large output, low fuel consumption
Full hydraulic control with electrical power
Siemens PLC operation with the operation convenience
Engine choice from Weicchai, Cummins and more.
The modular design enables fast assembly with Set Sail seniors engineers
Mining Dredger components available in factories to allow short delivery times
Control the working process of delivering dredged materials. lower cost;
Follow manufacture guideline: CCS-ZC standard
CE certificates acquired to prove high quality
Western Dredge brand parts, easy to find globally
Can choose reliable Chinese brand parts to lower costs
Gain access to our sales team, design team, manufacture team 24/7
Lifetime Technical Assistance
Optional equipment is available such as Spud carriage, anchor boom.
